Snow and Ice Melting Control Premium

$2,099
  • Voltage: 120 VAC; 50/60 Hz, 24A
  • Features NEMA 3R enclosure
  • Supports up to 6 sensors (aerial, gutter, or pavement)
  • Automatic and manual override operator controls
  • 2-year warranty
Need help? Call our experts at (800) 875-5285
Support Page
Jump to

Premium Snow & Ice Melt Control Description

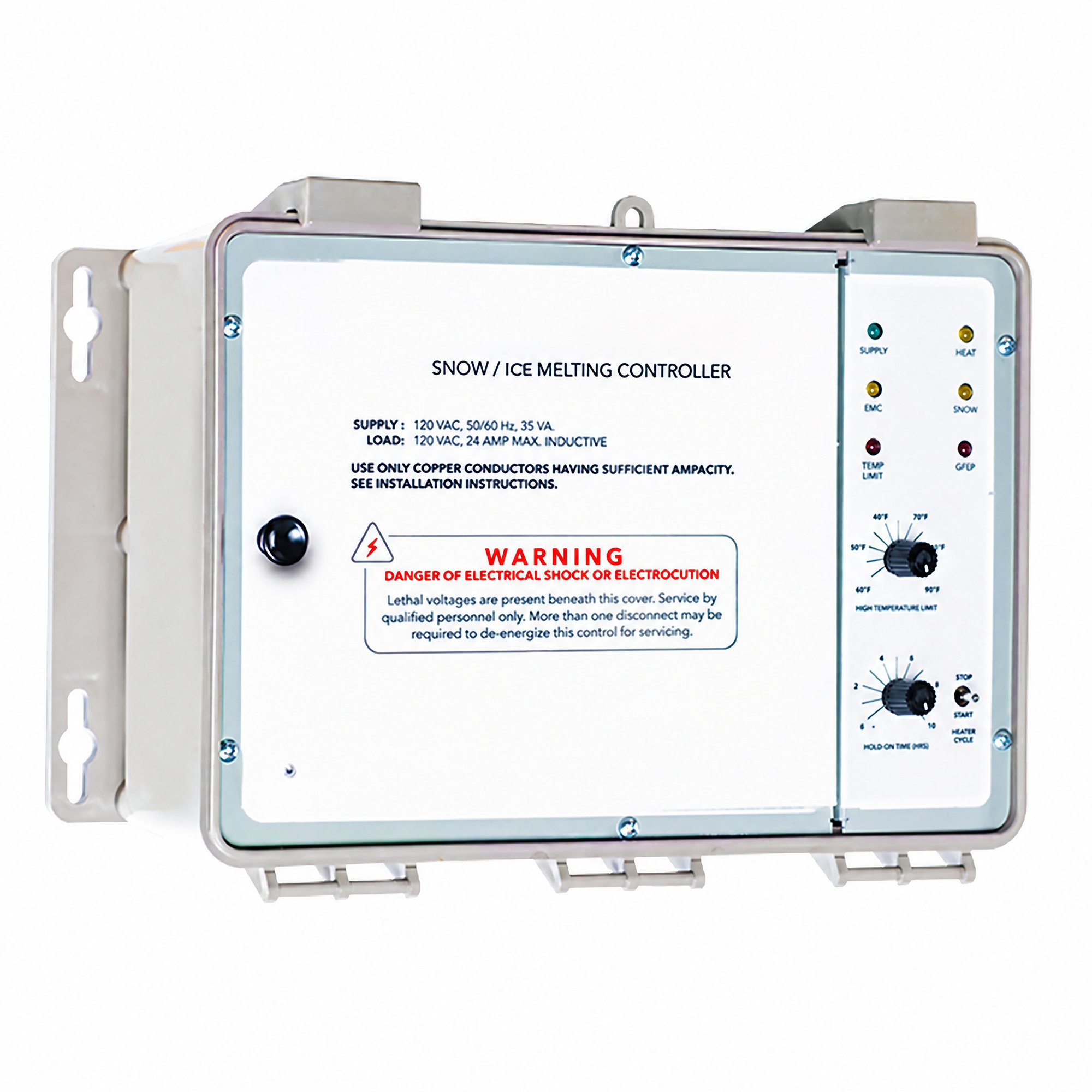

TheSCP-120 premium, automatic snow/ice melting control provides for easyinstallation and operation to minimize energy use. For use with WarmlyYourssnow melting or roof and gutter deicing systems,it operateselectrically- and mechanically-held contactors for pilot duty applications.

TheSCP-120 Premium Snow Melt Control includes an OT-Sensor (for use as anadditional slab temperature sensor) and features a NEMA3R wall-mounted enclosure (recommended for indoor installation). With an Energy Management Computer (EMC) interface and heater hold-onand test capabilities, the unit is rated for 120 VAC and supports up to sixsensors (aerial, gutter, or pavement). cULus Listed for use in Canada and the U.S.

The maximum load for this control is 24 Amps. We do recommend that it is used in conjunction with a compatible relay panel.

Specifications

Warranty / Certifications

Approvals cULus listed
Area of Use Non-hazardous locations
Warranty 2 years
Waterproofing NEMA 3R

Installation

Best Use Best For Asphalt Projects

Electrical

Building Automation Interface Dry relay contacts: Override On and Override Off inputs; Supply, Snow, Heat and High Temperature outputs

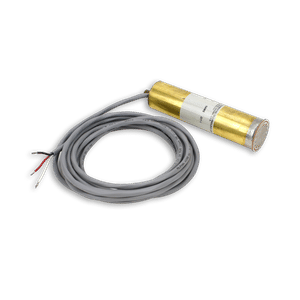

Compatible Sensors and Accessories RCO, AIR-SS, AIR-SS-2, GTR-SS, SC-SS-PAV-6E-KIT
Connection Method Hardwired
Control Options Automatic with manual override
Max Number of Sensors 6
Max Sensor Wire Length 500 ft (152 m) with 18 AWG 3-wire jacketed cable
Maximum Current 24 A
Mounting Method Wall Mounted
Voltage 120 V

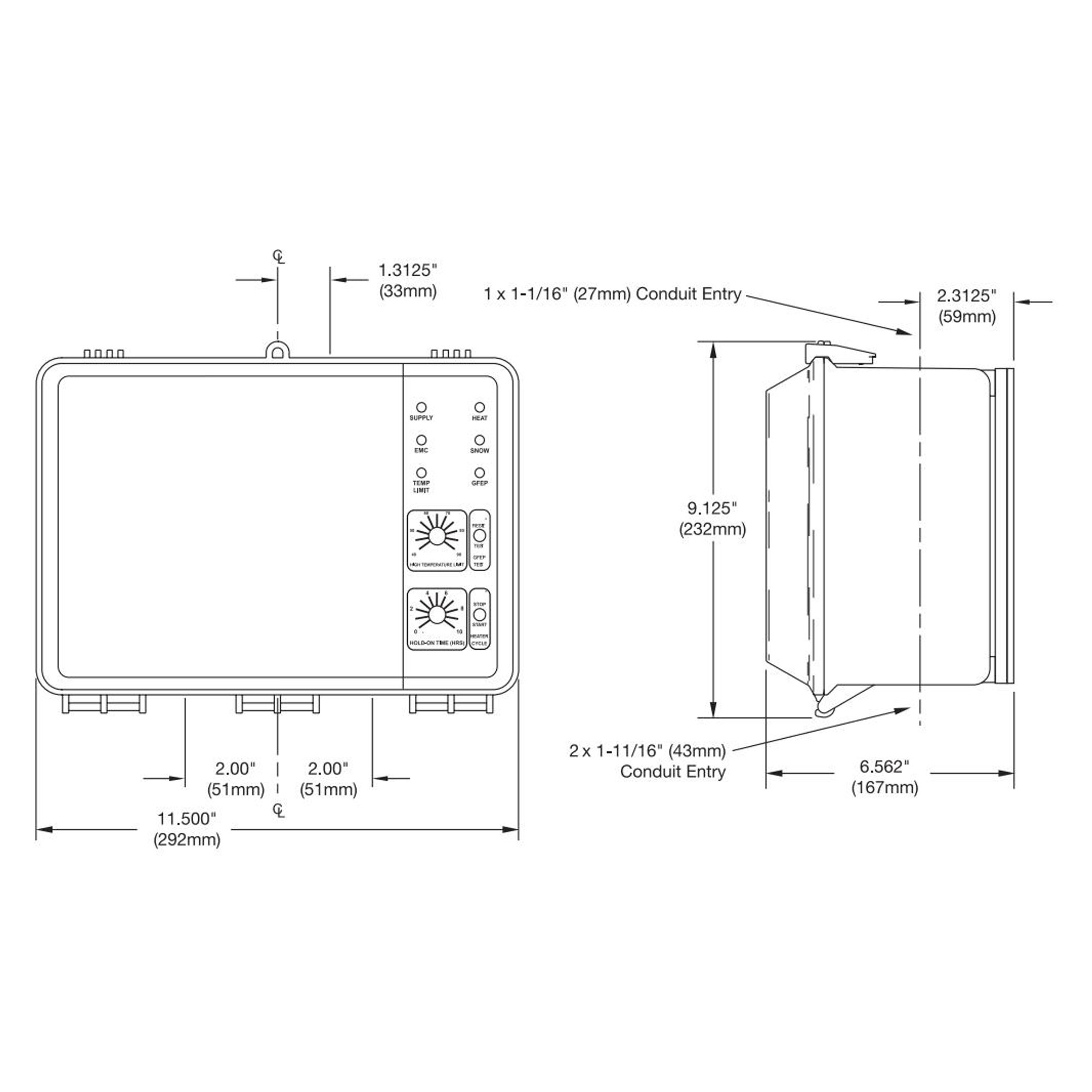

Product Dimensions

Depth 6.562 in / 167 mm
Height 9.125 in / 232 mm
Weight 9 lbs
Width 11.5 in / 292 mm

Construction

Operating Temperature Range -40°F to 160°F (-40°C to 71°C)

Logistics

Package Contents SCP-120 control panel (Qty 1), high-limit temperature sensor with 20′ lead (Qty 1)

Identifiers

SKU SCP-120
UPC (GTIN-12) 881308020613

Frequently Asked Questions

Showing all 5 questions

The AIR-SS-2 can be mounted at a distance up to 500 feet away from the controller using 22-gauge wires and up to 1000 feet using 18-gauge wires.

Was this helpful? Yes No

GFEP is the National Electric Code (NEC) required protection for fixed outdoor deicing and snow-melting equipment, which may be accomplished by using circuit breakers equipped with ground-fault equipment protection (GFEP) of 30 mA. It is important to understand that this required equipment protection is NOT the same as a 5 mA GFCI used for personal protection.

11 people found this helpful Was this helpful? Yes No

When the design requirement's amp draw exceeds the selected controller's capacity.

5 people found this helpful Was this helpful? Yes No

It depends on how the system is intended to operate. If the expectation is manual operation (ex. WiFi or Timer Control), then no sensors are required. If the expectation is automatic operation, then the system will require at least one snow sensor.

2 people found this helpful Was this helpful? Yes No

Ground fault equipment protection (GFEP) is intended to provide protection for equipment against damaging line-to-ground currents by disconnecting all ungrounded conductors of the faulted circuit.

2 people found this helpful Was this helpful? Yes No
